Rechargeable Wired TENS Unit with 24 Modes & 20 Intensity Levels

MEL009 Rechargeable Wired TENS Unit

Portable Electrical Stimulation for Everyday Body Comfort

The Mewloria MEL009 is a compact, rechargeable wired TENS unit designed for adjustable electrical stimulation and everyday personal wellness applications.

Combining 24 selectable stimulation modes, 20 intensity levels, and a clear backlit LCD, the MEL009 offers a versatile user experience in a slim handheld design.

The device features two wired electrode output ports with single-channel intensity control, making it a practical option for users who prefer straightforward operation without complicated settings.

For wellness brands, distributors, and sourcing companies, the MEL009 offers a product platform worth considering for private-label electrotherapy collections and OEM/ODM projects.

Key Features and Benefits

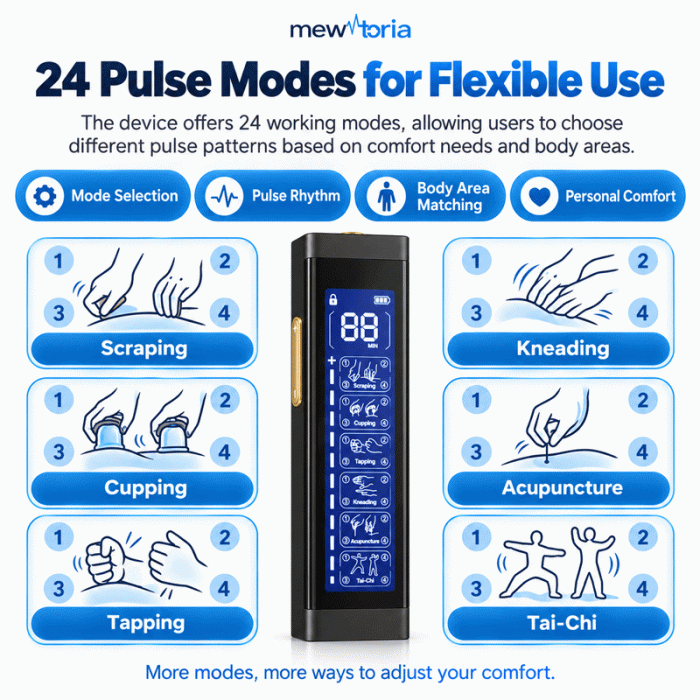

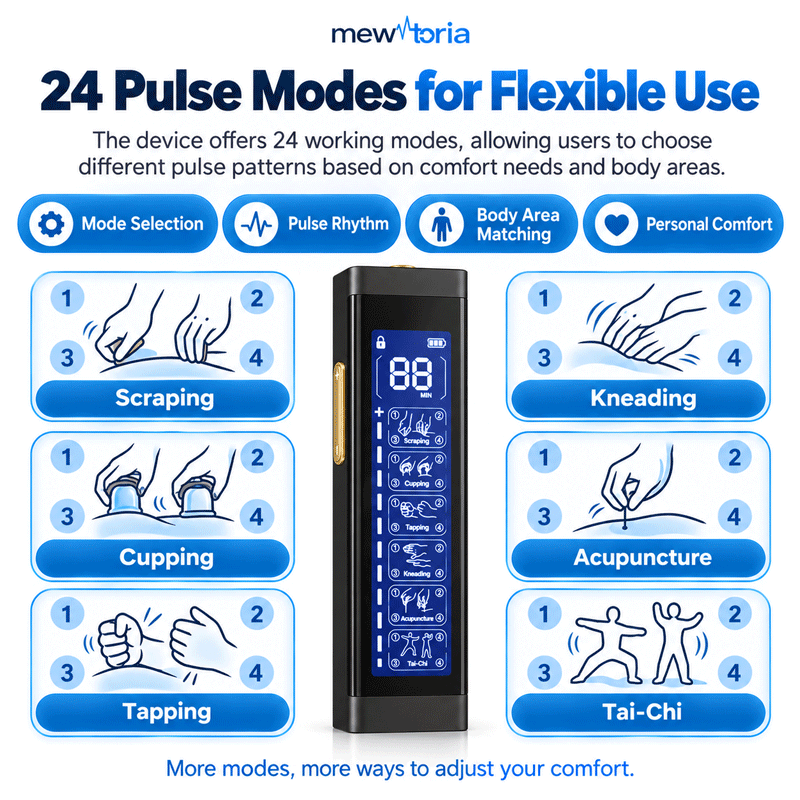

1. 24 Selectable Stimulation Modes

Multiple Pulse Patterns for Personalized Comfort

The MEL009 offers 24 selectable stimulation modes, providing different electrical pulse patterns for a customizable experience.

The six mode groups displayed on the LCD include:

• Scraping: Preset stimulation patterns represented by scraping-style graphics.
• Cupping: Pulse patterns represented by cupping-style graphics.
• Tapping: Stimulation patterns inspired by rhythmic tapping.
• Kneading: Pulse patterns represented by kneading-style graphics.
• Acupuncture: Electrical stimulation patterns identified by acupuncture-style icons.
• Tai Chi: Additional preset pulse patterns represented by Tai Chi graphics.

These names describe the device’s electronic stimulation programs rather than physical massage or acupuncture procedures.

Users can switch between available modes using the dedicated control button. Intensity automatically resets to level 0 when switching modes.

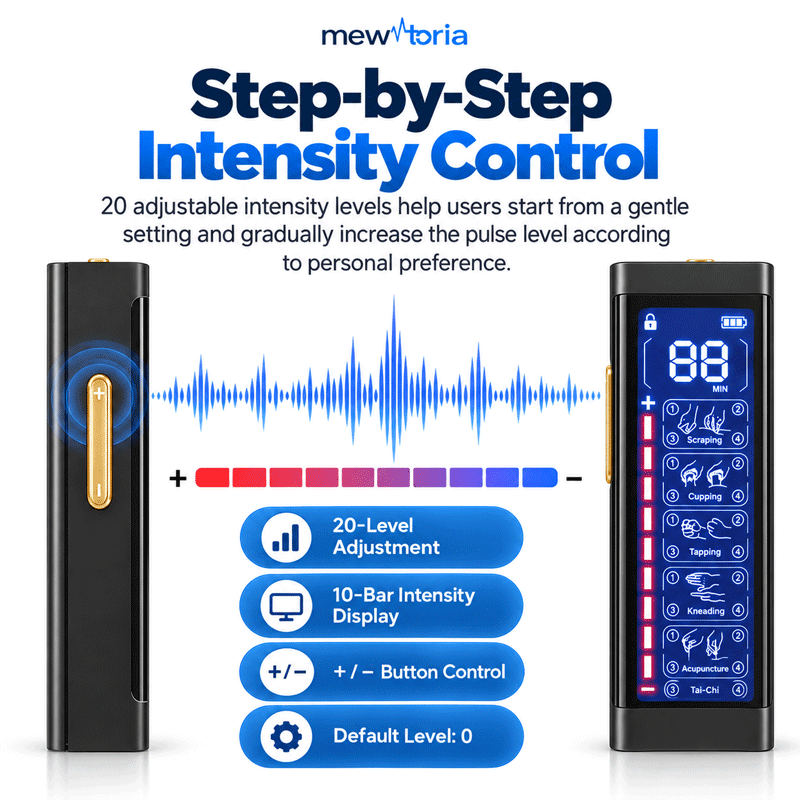

2. 20 Adjustable Intensity Levels

Gradual Adjustment for Individual Preferences

The MEL009 features 20 adjustable intensity levels, allowing users to increase or decrease the electrical stimulation output according to their comfort preferences.

Key advantages include:

• 20 selectable intensity settings
• Convenient physical + / – controls
• A 10-bar LCD intensity indicator
• Default intensity level of 0
• Automatic intensity reset when changing modes

The adjustable controls allow users to begin at a low setting and gradually increase the stimulation intensity as appropriate.

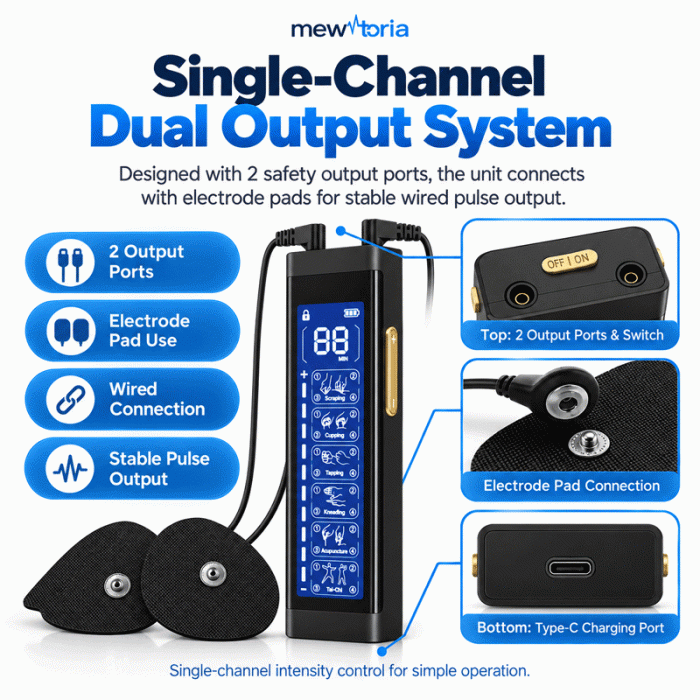

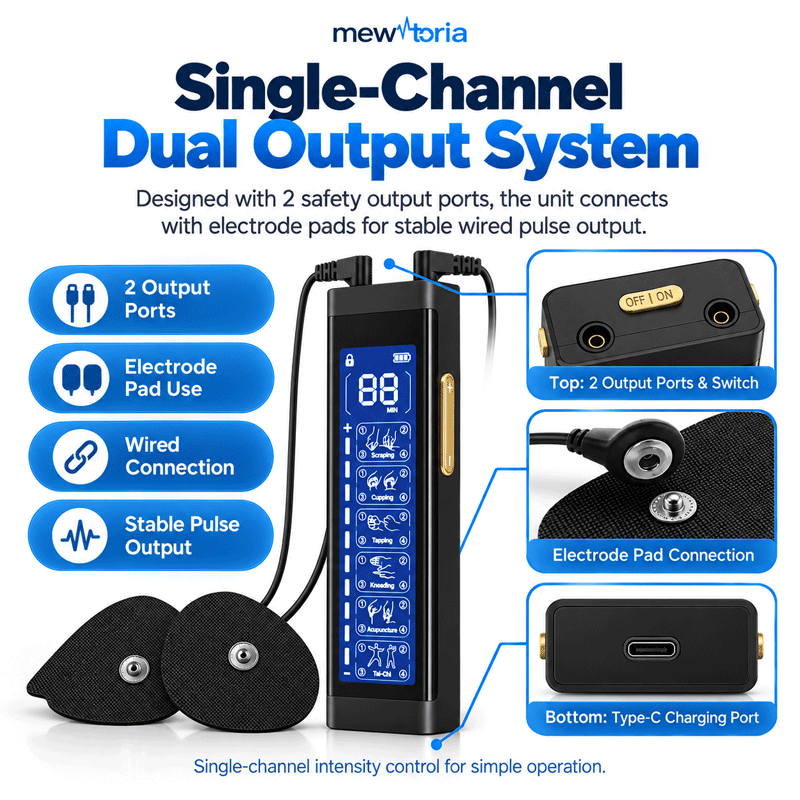

3. Single-Channel, Dual-Output Design

Two Electrode Connections with Simple Control

The MEL009 features two wired electrode output ports for connecting compatible electrode lead wires and pads.

The device uses a single-channel control system, meaning the connected outputs share the same intensity setting rather than operating as two independently adjustable channels.

This arrangement offers:

• Two wired output connections
• Single-channel intensity adjustment
• Compatibility with the specified electrode connection system
• Straightforward operation using physical controls

The compact wired configuration is suitable for buyers seeking a conventional handheld TENS design.

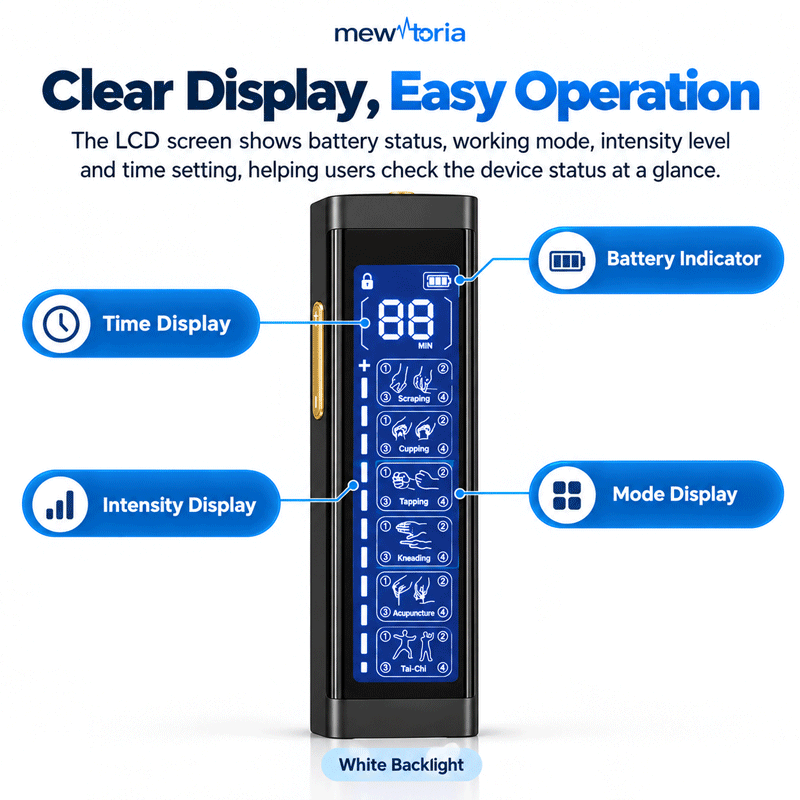

4. Clear Backlit LCD Display

Essential Operating Information at a Glance

The MEL009 features an LCD with white backlighting, allowing users to monitor the device’s settings during operation.

The screen displays:

• Selected stimulation mode
• Intensity indication
• Remaining session time
• Battery status
• Operating indicators

The backlight automatically turns off after approximately 10 seconds without operation. Pressing a button once when the backlight is off reactivates the display without changing the current function.

This design combines accessible information with convenient physical controls.

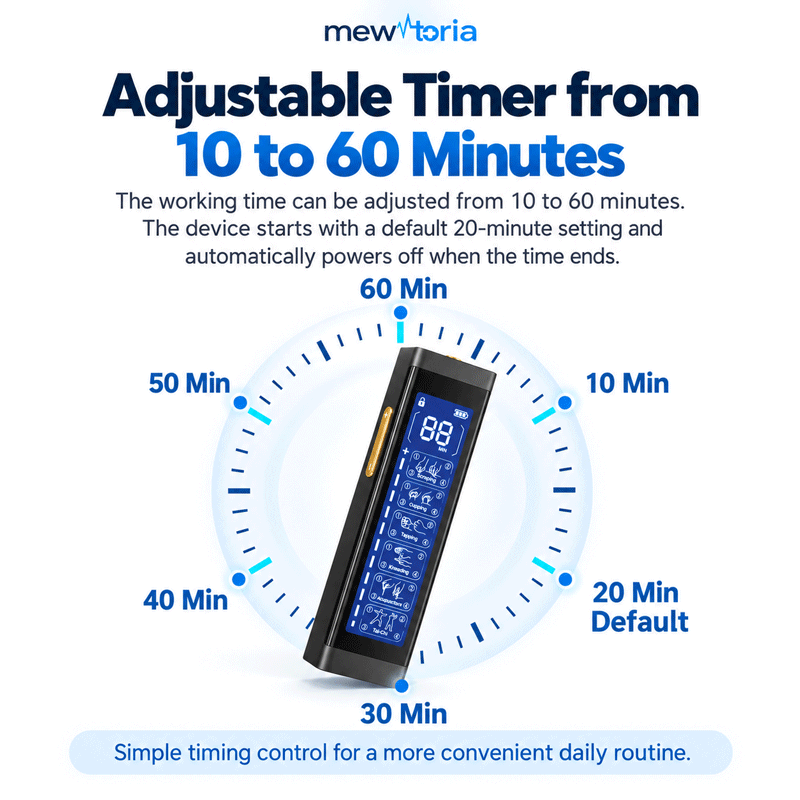

5. Adjustable 10–60-Minute Timer

Flexible Session Timing with Automatic Shutoff

The MEL009 includes an adjustable timer ranging from 10 to 60 minutes.

Users can select among six duration settings:

• 10 minutes
• 20 minutes
• 30 minutes
• 40 minutes
• 50 minutes
• 60 minutes

The device starts with a default session time of 20 minutes.

Each press of the timer button increases the session duration by 10 minutes. After reaching 60 minutes, the next selection returns to 10 minutes.

The device automatically powers off when the selected session ends.

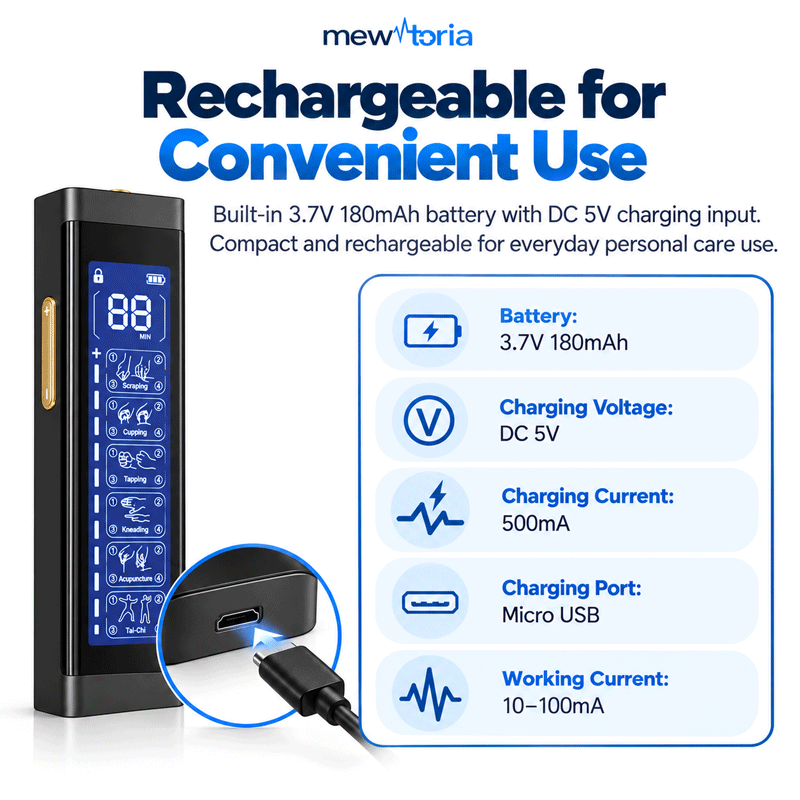

6. Rechargeable Battery with Micro USB Charging

Convenient Power for Portable Use

The MEL009 is powered by a built-in 3.7V 180mAh rechargeable battery, reducing the need for disposable batteries.

Key charging specifications include:

• Built-in 3.7V 180mAh rechargeable battery
• DC 5V charging input
• 500mA specified charging current
• Micro USB charging interface
• Three-segment battery status indicator

During charging, the battery indicator shows the charging status. Once fully charged, the display indicates a full battery.

The device does not operate while charging.

7. Compact Handheld Design

Practical for Storage, Transport, and Daily Routines

Measuring approximately 30 × 18.3 × 114.8 mm, the MEL009 features a slim rectangular housing designed for convenient handling and storage.

Its compact design, physical control buttons, and wired electrode connections make it a practical option for personal electrotherapy product collections.

The black housing and integrated display provide a straightforward, functional appearance suited to various retail and private-label product presentations.

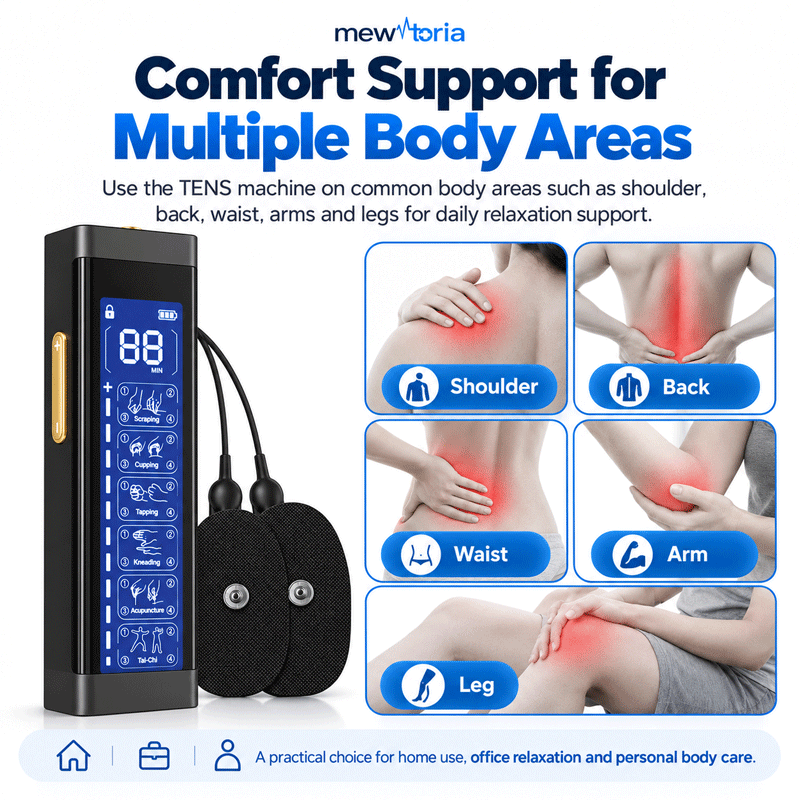

Applications and Target Markets

The MEL009 can be considered for personal electrical stimulation and wellness product collections, subject to the intended-use instructions and applicable market requirements.

Potential applications and sales channels include:

• Personal wellness and body comfort products
• Home-use electrical stimulation devices
• Portable electrotherapy product collections
• Wellness and recovery accessory ranges
• Consumer healthcare distribution
• Online retail and private-label brands
• OEM/ODM and wholesale sourcing projects

Electrode placement, stimulation intensity, and use duration should follow the approved product instructions and applicable safety guidance.

Technical Specifications

Specifications are based on the supplied engineering documentation. Final technical details should be confirmed against the approved production sample.

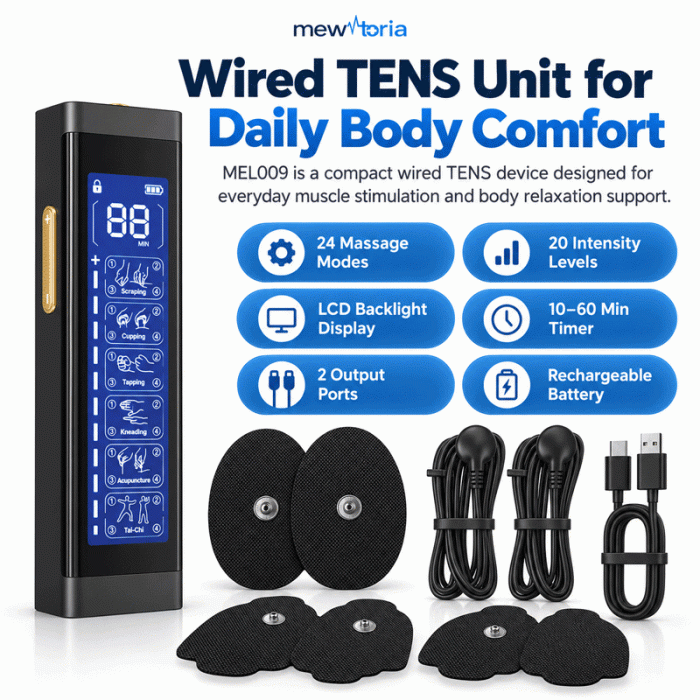

Package Configuration

The MEL009 product package can be configured with the following components:

• 1 × MEL009 Wired TENS Unit
• Compatible Electrode Pads
• Electrode Lead Wires
• USB Charging Cable
• User Manual
• Retail Packaging Box

Electrode quantities, pad shapes, cable configurations, and packaging contents are subject to the confirmed order requirements.

OEM/ODM and Private Label Solutions

Develop a TENS Product for Your Brand

Mewloria supports OEM/ODM and private-label project discussions for brands, importers, distributors, and wholesale buyers looking to expand their electrotherapy product offerings.

Depending on technical feasibility, order requirements, and project specifications, customization options may include:

Private Label Branding

Discuss brand logo placement, product identification, and customized labeling requirements.

Retail Packaging Design

Develop branded packaging concepts aligned with your target market, product positioning, and distribution channels.

Electrode and Accessory Configuration

Review compatible electrode pad options, lead wires, and package configurations based on your product requirements.

User Manual and Labeling

Discuss language localization, product instructions, and labeling requirements for the intended destination market.

Product Configuration Review

Evaluate available functions, operating characteristics, and project-specific customization requests.

Sample and Bulk Order Support

Coordinate sample evaluation, specification confirmation, production follow-up, and pre-shipment quality checks.

Customization availability, minimum order quantities, and delivery arrangements depend on the approved project specifications.

Why Choose the MEL009 for Your Product Line?

The MEL009 brings together several features commonly considered when sourcing a compact wired TENS device:

• 24 selectable stimulation modes
• 20 adjustable intensity levels
• Two wired outputs with shared intensity control
• Clear LCD operating information
• Adjustable session timer
• Built-in rechargeable battery
• Compact handheld construction
• Options for private-label packaging and accessory configuration

For brands and distributors seeking a compact electrical stimulation product, the MEL009 provides a practical platform for evaluating functionality, branding, and retail presentation.

Request a Quote or Discuss OEM/ODM Options

Looking for a Rechargeable Wired TENS Unit for Your Brand?

Contact Mewloria to discuss the MEL009, available product configurations, customization requirements, and sample evaluation options.

Please share your target market, estimated order quantity, preferred packaging, and accessory requirements.

Our team can help you review the product specifications and evaluate
